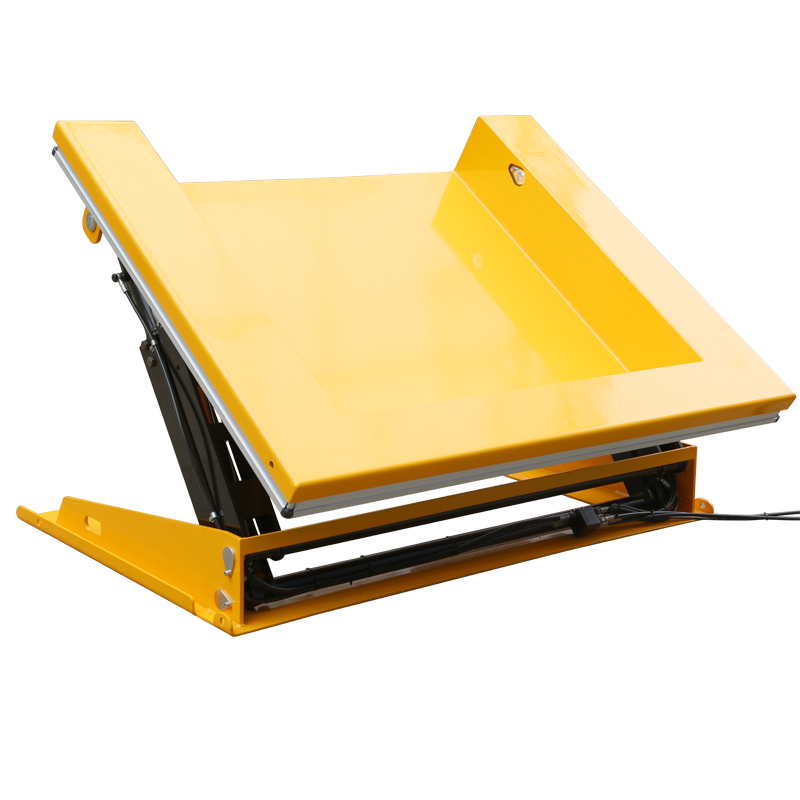

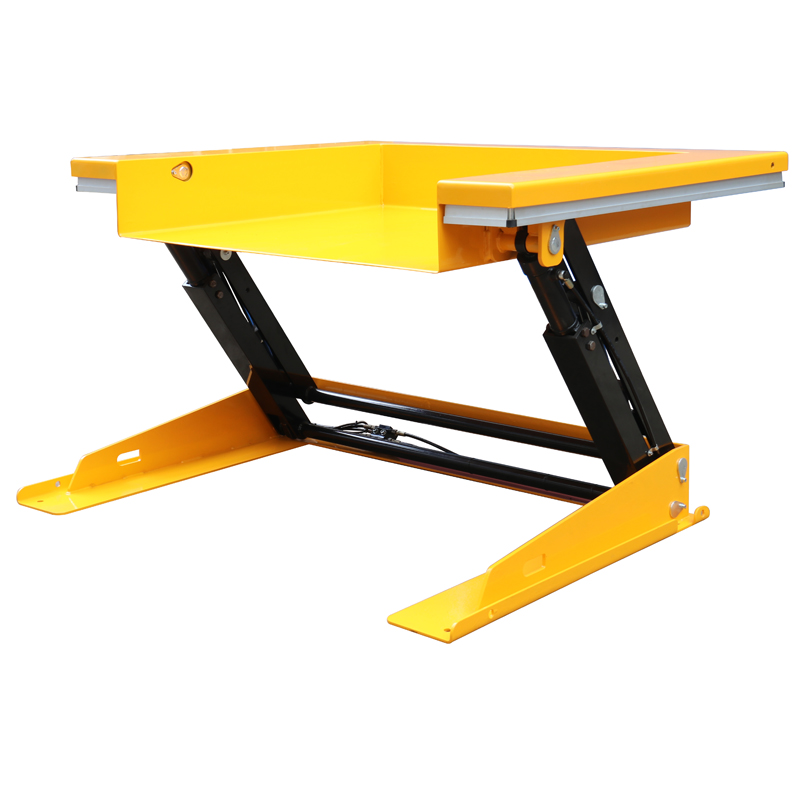

Tilter Table Small Platform ALT750 - Small platform for special size materials
- Meet EN1570 norm and ANSI/ASME safety standard
- Ergonomic structure design
- One mechanism implements lifting and tilting to replace the traditional lift table
iリフト番号 | | 1314801 | 1314802 | 1314803 | 1314804 | 1314805 |
型番 | | ALT750 | ALT1500 | ALT1500UL | ALT1500UM | ALT1500US |
容量 | kg(lbs) | 750(1650) | 1500(3300) | 1500(3300) | 1500(3300) | 1500(3300) |
Lowering Height | mm(インチ) | 235(9.3) | 235(9.3) | 6(0.2) | 6(0.2) | 6(0.2) |
Raised Height | mm(インチ) | 820(32.3) | 820(32.3) | 820(32.3) | 820(32.3) | 820(32.3) |
Platfrom Size LxW | mm(インチ) | 1300x800(51.1x31.5) | 1300x800(51.1x31.5) | 1380x1730(54.3x68.1) | 1380x1510(54.3x59.4) | 1380x1310(54.3x51.5) |
Tiltable degree | | 0∽-45° | 0∽-45° | 0∽-45° | 0∽-45° | 0∽-45° |
リフトタイム | 秒 | 18 | 16 | 16 | 16 | 16 |
パワーパック | | 0.75kw | 0.75kw | 0.75kw | 0.75kw | 0.75kw |
正味重量 | kg(lbs) | 300(660) | 355(781) | 440(968) | 410(902) | 390(858) |
